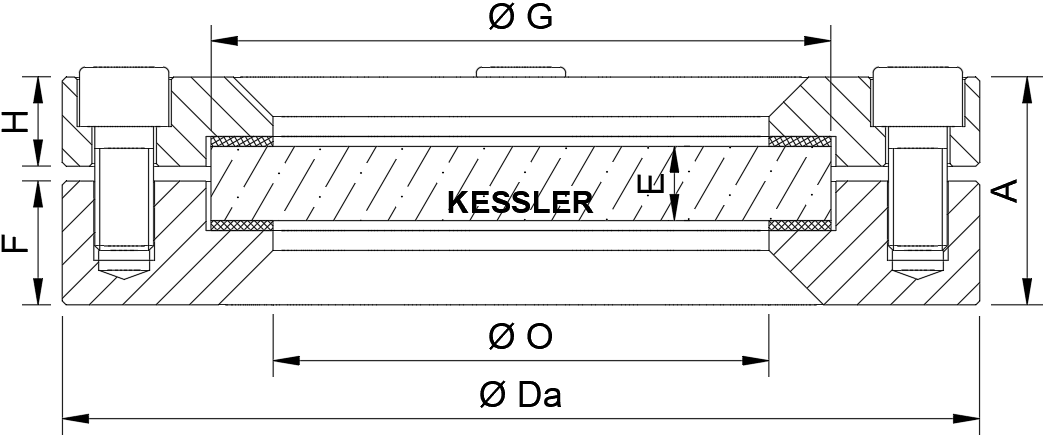

KL 513
Container sight glasses of type KL 513 are suitable for monitoring the liquid level in containers. They can be welded directly into container walls.
*on request
max. 16 bar
heat-resistant up to 243°C
for liquid media
for gaseous media
Frame sizes up to
Ø 275 mm
Custom-made products possible
>50 sealing materials
Accessories available
Technical data:
Operating pressure
6 / 10 / 16 bar
Base frame
1.4404 / 1.4571 / 1.4435 / 1.4462 / ST37 / H2
On request with APZ DIN EN 10204-3.1
Cover flanges
1.4301 / 1.4404 / ST37 / H2
Sight glass disc
Borosilicate glass according to DIN 7080 up to 243°C

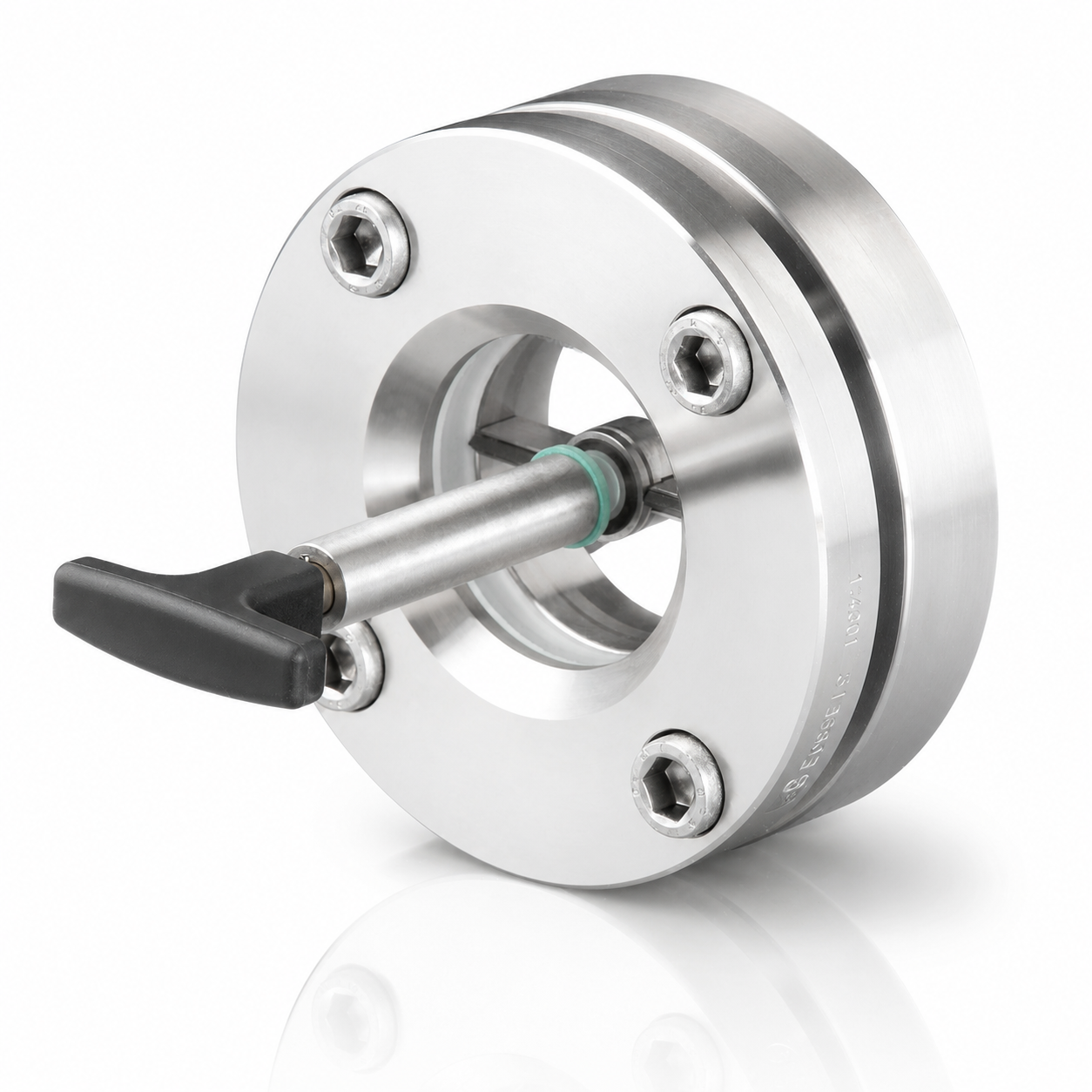

also with a wiper up to size 150 up to 6 bar
Bolts
Socket head screws DIN 912 A2-70 or A4-70 - countersunk
Gaskets
PTFE, EPDM, Klingersil® C-4400, Reinz AFM 34, Silicone, Garlock GYLON®
Available with USP Class VI certification on request
*Other available on request
Versions:
Variant with blind hole
for welding
Variant with Radius
for Welding
Both variants combinable with
continuous drainage slope
